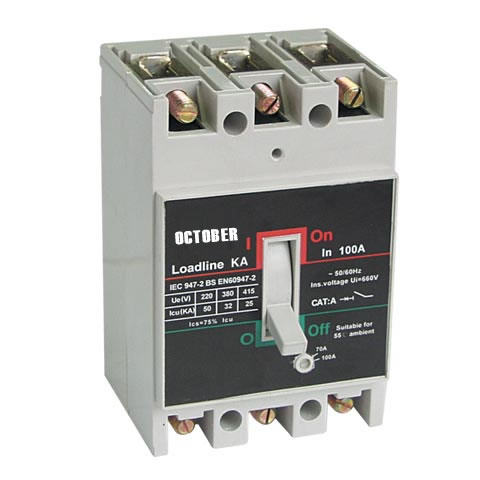

OA moulded case circuit breaker is one of the most advanced type breakers in the world, which adopts international advanced design and manufacture technology. They are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 630A.Its rated insulation voltage is 690V. It can make and break the non-frequently circuit in the normal conditions. It takes protect effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage. It complies with IEC60947-2.

Model	OA	Number of Poles	Rated Insulation voltage (V)	Rated Operating voltage (V)	Arcing-Over Distance(mm)
Number of Poles	1P, 3P	3P	3P	3P	3P
Rated Current (A)	25, 32, 40, 50, 63, 80, 100, 125	160 200 225	250 315 400	500 630	800
Lowest Setting Current (A)	17.5, 22.5, 28, 35, 44, 56, 70, 88	112 140 157.5	175 221 280	350 441	560
