OLS series MCB
 |
 |
| OLS 1P | OLS 2P |
|---|
 |
 |
| OLS 3P | OLS-B 1P |
|---|
 |
 |

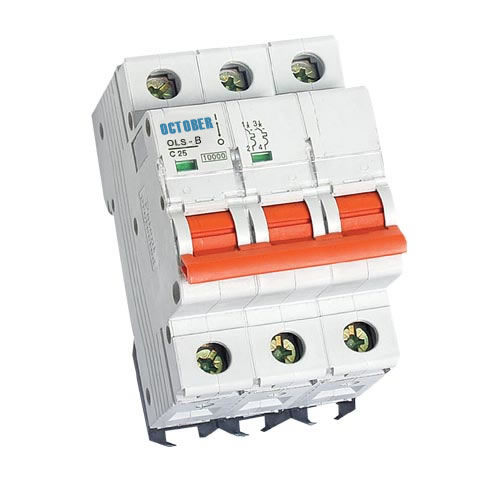

| OLS-B 2P | OLS-B 3P |
|---|
 |
 |

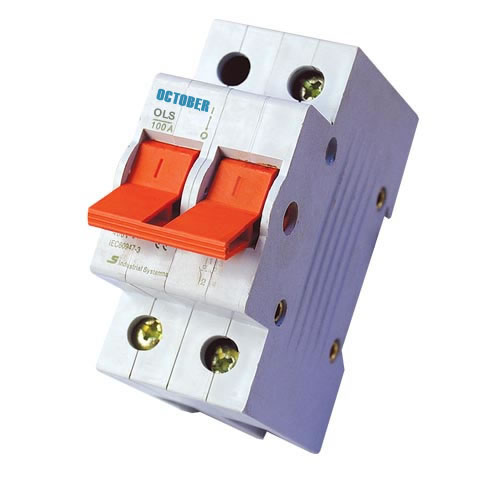

| Switch 1P | Switch 2P |
|---|
Application
OLS series circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It hashigh breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50 Hz/60Hz single pole 230V or two, three, four poles 400V circuit for overload and sho rt-circuit protection as well as for unfreque nt on-and-off switching electric equipment and lighting circuit in normal case. The pr oducts comply with IEC 60898.
Specifications
| Series | B | C | D |
| Type | 1 2 3 | 1 2 3 4 | 1 2 3 |
| Poles | 240/415 | ||
| Rated Voltage(V) | 6,10,16,20,25, | 2,4,6,10,20, 25,32,40,50 |
6,10,15,20, 30,40,50 |
| Rated Current(A) | 10 | 6 | 6 |
| Breaking Capacity(KA) | Themal-coil magnetic | ||
| Tripping Device |
| Auxiliary switch & alarm switch | |
| Rated operational current | 220V 3.5A |
| (AC11 duty) | 415V 2A |
| Mechanical lifespan | 2,000 operations |
| Terminal capacity | 0.75,2.5mm |
| Weight | 0.4kg/EA |
