Product Catalogue

Terminal Blocks

Specifications

Material:

● PA, Polyamide 66, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force,Working Temperature: - 30℃ to 110℃
● Brass, screw is brass too, surface plated brass.
● Voltage: 250 - 450V
● Color: grey and blue color as standard

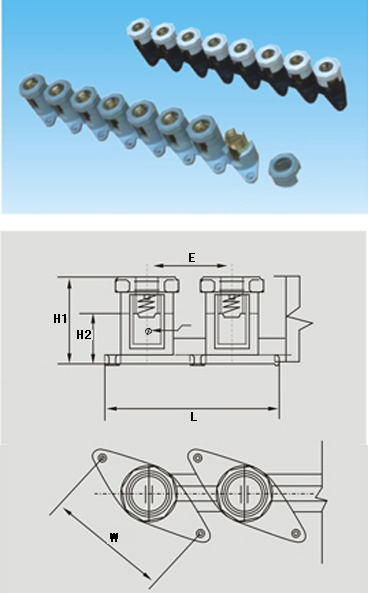

S.P012 8X1 Terminal	S.P012-1 10X1 Terminal

S.P012 8X1 Terminal

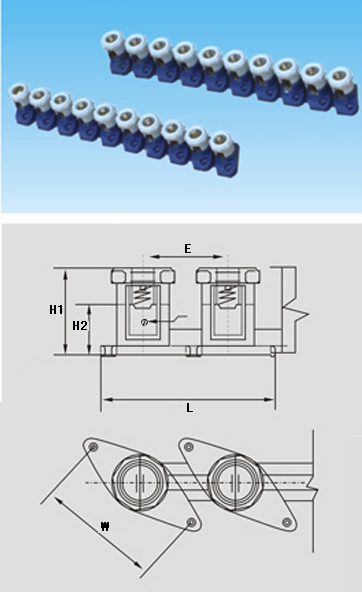

S.P012-1 10X1 Terminal

Item no.

Spec.

screw size

material

SP012-01

16mm²

173

26.4

11.5

8 x 5

SP012-02

25mm²

206

27.5

12.7

9 x 6

SP012-03

35mm²

250

41.5

16.8

12 x 8

M12

SP012-04

50mm²

260

41.5

35.5

17.2

14 x 8.5

31.5

M14

SP012-05

70mm²

272

16 x 9

M14

Material:

● Brass, screw is brass too, surface plated brass.
● Voltage: 250 - 450V
● Color: Natural color as standard


S.P026 1X1 Terminal	S.P013 5x1 Terminal

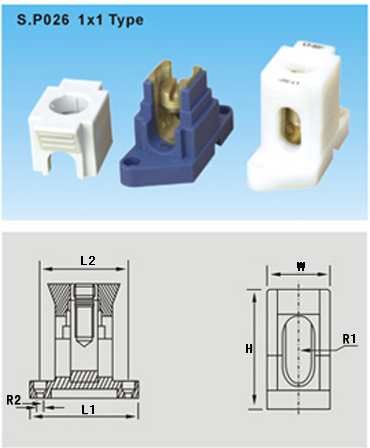

S.P026 1X1 Terminal

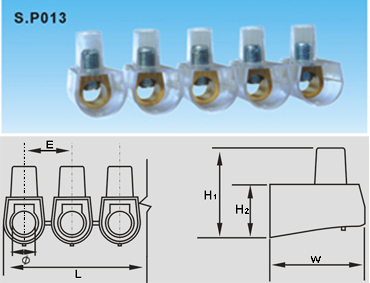

S.P013 5x1 Terminal

Item no.	Spec.	L1	L2	W	H	Φ1	Φ2	screw size
Item no.	Spec.	mm						screw size
SP026-01	16mm²	41	31.5	17	32	14.5 x 4.8	4.3	M8
SP026-02	25mm²	47.2	37.5	20.8	37.7	17 x 6.8	4.3	M10
SP026-03	35mm²	54.8	44.5	24.4	42.4	19 x 8.4	4.3	M12
SP026-04	50mm²	65	54	27	48.5	22 x 9.3	5	M14
SP026-05	70mm²	66.8	56	29	52.5	25 x 10.5	5	M16
SP026-06	95mm²	71	60	33.5	56.7	29 x 12.6	5	M18
SP026-07	120mm²	73.4	62	35.8	61	33 x 13.8	5	M20

Item no.	Spec.	L	W	H1	H2	Φ	E	screw size	material
Item no.	Spec.	mm						screw size	material
SP013-01	4mm²	58.5	20	20	10.5	1.4	12	M3.5	PC
SP013-02	6mm²	67.5	22.5	23.5	12.7	6.2	14	M5	PC
SP013-03	10mm²	82	27	27	15.5	7.6	17	M6	PC
SP013-04	16mm²	110	31	31.1	18	9.5	22	M8	PC
