- Round Cable Clip
Item.No. H (mm) D (mm) Nail R-3.5MM 4.5 3.5 1.7 x 14 R-4MM 5.3 4.0 1.7 x 14 R-5MM 6.3 5.0 1.7 x 14 R-6MM 7.4 6.0 1.85 x 16 R-7MM 8.4 7.0 1.85 x 18 R-8MM 9.4 8.0 1.95 x 19 R-9MM 10.4 9.0 2.05 x 22 R-10MM 11.4 10.0 2.20 x 23 R-12MM 13.4 12.0 2.35 x 25 R-14MM 16.4 14.0 2.35 x 30 R-16MM 17.7 16.0 2.35 x 32 R-18MM 19.7 18.0 2.6 x 38 R-20MM 22.2 20.0 2.7 x 40 R-22MM 25.0 22.0 2.9 x 43 R-25MM 27.7 25.0 3.2 x 50 R-30MM 33.1 30.0 3.5 x 55 R-32MM 35.6 32.0 3.5 x 55 R-35MM 36.6 35.0 3.5 x 60 R-40MM 45.2 40.0 3.5 x 65 - Flat Cable Clip
Item.No. H (mm) A (mm) B (mm) Nail F-4MM 6.0 3.8 4 1.7 x 14 F-5MM 5.3 3.8 5 1.7 x 14 F-6MM 6.3 4.1 6 1.7 x 16 F-7MM 7.4 4.7 7 1.9 x 16 F-8MM 8.4 5.0 8 2.1 x 19 F-9MM 9.4 5.4 9 2.1 x 20 F-10MM 10.4 5.7 10 2.3 x 21 F-12MM 11.4 6.1 12 2.3 x 23 F-14MM 13.4 8.0 14 2.3 x 25 - Coaxial Cable Clip
Item.No. W (mm) Nail C-0305 3-5 1.2 x 20.0 C-0406 4-6 1.4 x 20.5 C-0508 5-8 2.0 x 25.5 C-0607 6-7 2.0 x 20.0 C-0610 6-10 2.0 x 25.5 C-0812 8-12 2.0 x 30.0 C-1014 10-14 2.0 x 30.5
Wenzhou Aolang Import & Export Co.,Ltd
E-mail: electric@aolangco.com
Current Location: xabond >> Products >> Low Tension Electric ... >> Electric Accessories >> Cable Clip
Product Catalogue

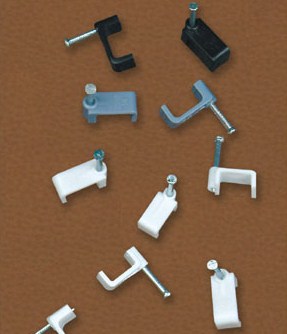

Cable Clip
 |
 |
| Coaxial Cable Clip | Flat Cable Clip |
|---|
 |
 |
| Packing | Round Cable Clip |
|---|
 |
| Drawing |
|---|
Specifications
