Waterproof panel board
Double Doors Single Door Two Locks Single Door

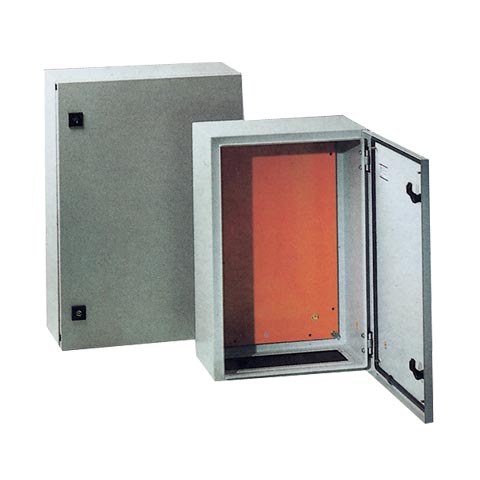

Single Door
External
dimension (mm)		 mounting plates mounting
plate adjustable supports		 19"AC
swing frame		 Internal
doors
Height Width Depth metal insul. pert.
250 200 150 ● ●   s
300 250 150 ● ● ●
300 250 200 ● ● ● ●
300 300 150 ● ● ●
300 300 200 ● ● ● ●
300 300 150 ● ● ●     ●
400 300 200 ● ● ● ●
400 400 200 ● ● ● ●
400 600 250 ● ● ● ●
400 600 300 ● ● ● ●
400 400 150 ● ● ●
500 400 200 ● ● ● ●   ●
500 400 250 ● ● ● ●   ●
500 500 250 ● ● ● ●
500 400 150 ● ● ●
600 400 200 ● ● ● ●   ●
600 400 250 ● ● ● ●   ●
600 500 150 ● ● ●
600 500 200 ● ● ● ●
600 500 250 ● ● ● ●
600 600 250 ● ● ● ● ●
600 600 300 ● ● ● ● ●
600 500 200 ● ● ● ●
400 500 250 ● ● ● ●   ●
400 600 200 ● ● ● ●   ●
800 600 250 ● ● ● ● ● ●
800 600 300 ● ● ● ● ● ●
800 800 200 ● ● ● ●   ●
800 800 300 ● ● ● ●
1000 600 250 ● ● ● ● ●
1000 600 300 ● ● ● ● ●
1000 800 250 ● ● ● ●
1000 800 300 ● ● ● ●   ●
1000 1000 300 ● ● ● ●   ●
1200 800 300 ● ● ● ●
1200 1000 300 ● ● ● ●

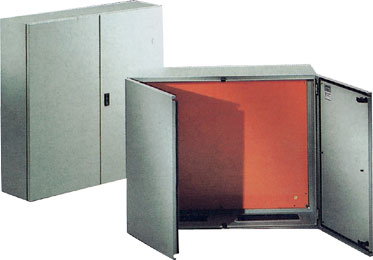

Double Doors
External dimension (mm) mounting plates 19"RAC swing frame Internal doors
Height Width Depth
1000 1000 300 ●   ●
1200 800 300 ●   ●
1200 1000 300 ●   ●
1200 1200 400     ●
1400 800 400 ● ● ●
1600 800 300 ● ● ●
1600 800 400 ● ● ●
1600 1000 200 ●   ●
1600 1000 400 ●   ●
1600 1000 400 ●   ●
1300 1200 300 ●   ●
1600 1200 400 ●   ●
1800 800 400 ● ● ●
1800 1200 400 ●   ●
1800 1200 400 ●   ●
1800 1600 400 ●   ●
2000 800 400 ● ● ●
2000 1000 400 ●   ●
2000 1200 400 ●   ●
