OGMC series AC Contactor
 |
 |
 |

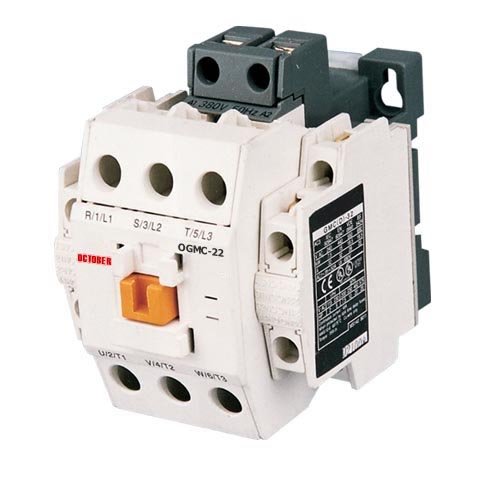

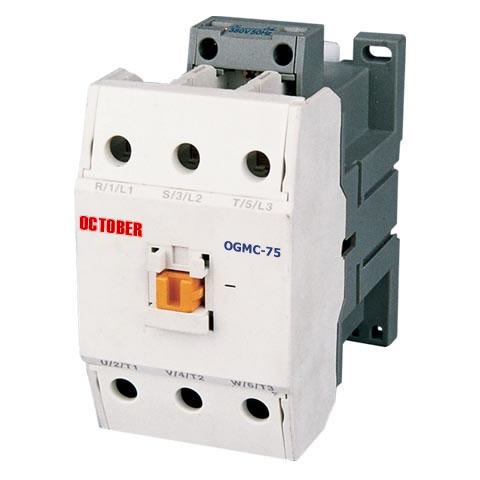

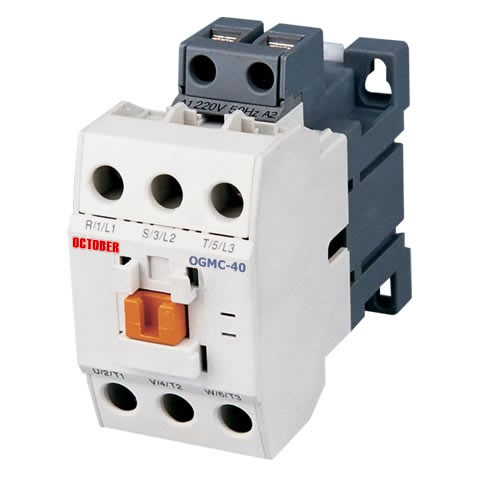

| OGMC-22 | OGMC-40 | OGMC-75 |
|---|
Application
OGMC series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC947-2, VDE0660 & BS5452.
Specifcation
| Type | OGMC-12 | OGMC-12 | OGMC-18 | OGMC-22 | OGMC-32 | OGMC-40 | OGMC-50 | OGMC-65 | OGMC-75 | OGMC-85 | ||
| IEC-60947 | AC1 duty | 20A | 20A | 25A | 32A | 50A | 60A | 80A | 100A | 110A | 135A | |
| AC3 duty | 200~240V | 2.5kW 11A |
3.5kW 13A |
4.5kW 18A |
5.5kW 22A |
7.5kW 32A |
11kW 40A |
15kW 55A |
18.5kW 65A |
22kW 75A |
25kW 85A | |
| 380~440V | 4kW 9A |
5.5kW 12A |
7.5kW 18A |
11kW 22A |
15kW 32A |
18.5kW 40A |
22kW 50A |
30kW 65A |
37kW 75A |
45kW 85A | ||
| 500~550V | 4kW 7A |
7.5kW 12A |
7.5kW 13A |
15kW 22A |
18.5kW 28A |
22kW 32A |
30kW 43A |
37kW 60A |
45kW 64A |
45kW 75A | ||
| 690V | 4kW 5A |
7.5k W9A |
7.5k W9A |
15kW 18A |
18.5kW 21A |
22kW 25A |
30kW 33A |
37kW 47A |
45kW 47A |
45kW 52A | ||
| UL | Continuous current(Ith) | 20A | 25A | 30A | 32A | 45A | 50A | 70A | 80A | 90A | 100A | |
| AC Motor Single phase Three phase |
115V | 0.5HP | 0.5HP | 1HP | 2HP | 2HP | 3HP | 3HP | 5HP | 5HP | 7.5HP | |
| 230V | 1HP | 2HP | 3HP | 3HP | 5HP | 5HP | 7.5HP | 10HP | 15HP | 15HP | ||
| 200V | 2HP | 3HP | 5HP | 7HP | 7.5HP | 10HP | 10HP | 15HP | 20HP | 25HP | ||
| 230V | 3HP | 3HP | 5HP | 7.5HP | 10HP | 10HP | 15HP | 20HP | 25HP | 30HP | ||
| 460V | 2HP | 7.5HP | 10HP | 10HP | 20HP | 25HP | 30HP | 40HP | 50HP | 50HP | ||
| 575V | 5HP | 10HP | 15HP | 15HP | 20HP | 25HP | 30HP | 40HP | 50HP | 50HP | ||
| Life time (unit:10,000 time) Aux.contact Electrical Mechanical |
250 | 250 | 250 | 250 | 200 | 200 | 200 | 200 | 200 | 200 | ||
| 2500 | 2500 | 2500 | 2500 | 1500 | 1500 | 1000 | 1000 | 1000 | 1000 | |||
| Standard | 1NO 1NC |
1NO 1NC |
1NO 1NC |
1NO 1NC |
2NO 2NC |
2NO 2NC |
2NO 2NC |
2NO 2NC |
2NO 2NC |
2NO 2NC | ||
